Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame

Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame

Large Image :  Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame

Product Details:
Place of Origin: Shandong, China
Model Number: ST8X50
Payment & Shipping Terms:
Minimum Order Quantity: 300 square meters
Price: $4.00 - $6.00/square meters
Packaging Details: Steel frame will load into container directly.<br>Small accessories are packed by cartoon or bags.<br>Film is packed by bags.
Supply Ability: 50000 Square Meter/Square Meters per Month
Contact Now

Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame

Description
Features: Easy Assembled Manufacturer: Shine-tech
Instruction For Use: Installation Drawing Size: Small
Material: PE Type: Single-Span Agricultural Greenhouses
Cover Material: Film Layer: Single
Product Name: Tunnel Greenhouse Application: Growing Tomato, Cucumber, Peper
Width: 6m-10m Length: 10-100m
Height: 3.5-5M Frame Material: Hot Dip Galvanized Steel Tube
Covering: 150/200micro Film Ventilation: Roof Ventilation+side Ventilation
Optional System: Cooling System,irrigation System

Product Description
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 0
Cheap Price Small Agricultural Tunnel Green House for Greenhouse Farming and Gardening
Tunnel film greenhouse is a simple and practical protective cultivation facility, widely be used all over the world because of its easy construction, easy use and low investment for vegetable and flower productions.
Specification
Small Agricultural Tunnel Green House for Greenhouse Farming and Gardening
Product Name
Single Span Tunnel Greenhouse
Span width
8m
Arch distance
50m
Height of Greenhouse
3.5-5m (customization)
Covering
150/200 micron PE/PO Film
Wind load
45km/m2
Snow load
0.25~0.30KN/m2
Max. rainfall
140mm/h
Hanging load
14kgkg/m2
Optional system
Side ventilation, roof ventilation, shading net, drip irrigation system, fogging system, cooling system, etc.
Details Images
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 1

Frame

25mm/32mm/ 42mm /60mm diameter, thick 1.5mm, 2.0mm, hot dip galvanized steel pipe
The greenhouse structure is installed directly by screws or self drill screws.
The warranty period of frame is 15~20 years
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 2

Covering

Thickness: 120/150/200 microns. It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%
Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 3

Ventilation System

The side ventilation or top ventilation system are both available according to your requirement .
40mesh insect net will be offered for vents
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 4

Locking profile system

The film lock accessories is mainly including lock channel and wiggle wire, self drill screw.
Lock channel is usually 5m/5.8m/6m
wiggle wire is 2meter, packed by cartoon. each cartoon is 500pcs.
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 5
Anti-insect net
The Anti Insect Net is made by 100% virgin HDPE with stable UV. It provides protection from range of insects that can be harmful. This preventive method reduces the cost of pesticides to grow organic and natural cultivation.

Other options for tunnel greenhouse


Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 6

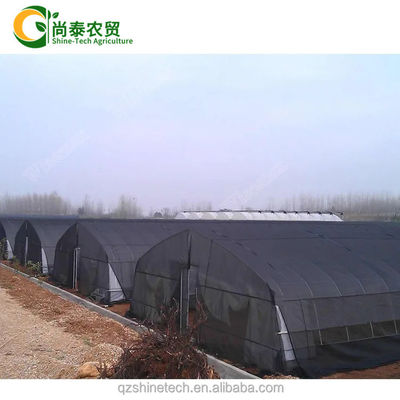

Shading system---Black shade net
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 7

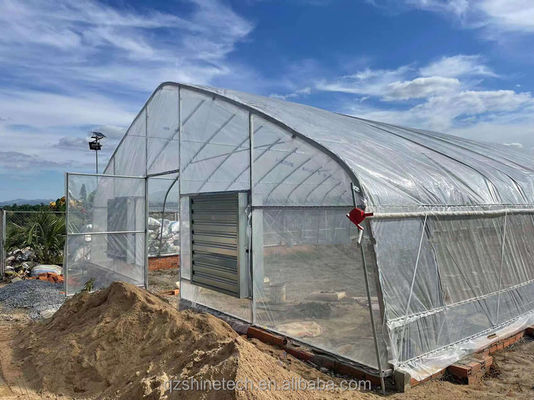

Cooling System--- Exhaust fan
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 8
Spraying system
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 9
Drip irrigation system
Professional Design
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 10
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 11
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 12
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 13
Project Case
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 14
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 15
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 16
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 17
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 18
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 19
Company Profile
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 20
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 21
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 22
Qingzhou Shine Tech Agriculture Equipment Co., LTD
Our Company is a high-tech agricultural equipment company integrating design, manufacturing, installation, after-sales, and Tunkey service. Our main products are single tunnel greenhouse, multi span film greenhouse, PC greenhouse, Venlo glass greenhouse, Photovoltaic greenhouse, winter solar greenhouse, blackout greenhouse, hydroponic system, greenhouse film, cooling fan and pad, shading system, heating system, nursery bench, etc.
Our company persists in principal of quality first, builds wholesome quality management system, and strictly control the product quality. Our products have exported to the Philippines, Indonesia, India, Malaysia, Singapore, Thailand, Korea, Sri Lanka, Australia, French Polynesia, Uzbekistan, Kazakhstan, Turkmenistan, Armenia, UAE, Qatar, Saudi Arabia, Oman, Senegal, South Africa, Zimbabwe, Nigeria, Kenya, Ghana, Cameron, Democratic Republic of the Congo, Ethiopia, USA, Canada, Peru, Chile, Guyana, and so on, total more than 40 countries and places.
Our company is adhering to the business concept of "doing our best, pursuing outstanding, quality first and customer orientation", and trying our best to supply the best products and first-rate service to all the domestic and overseas customers. Warmly welcome you to our company for visiting and business negotiation. If you prepare to build greenhouse, welcome to contact me and tell me your requirements, then I will give you a best design and quotation.
My Whatsapp/Wechat is same: +86 15966157097
EMAIL: shinetech2022@163.com
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 23
Packing & Delivery
Container loading for large order
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 24
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 25
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 26
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 27
Wooden box package Delivery for small order
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 28
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 29
Cucumber Farming Small Agricultural Tunnel Greenhouse with Galvanized Steel Frame 30
Why Choose Us
Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.
Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
