Galvanized Steel Tube Winter Greenhouse For Hydroponic Growing System With Film Cover

Large Image : Galvanized Steel Tube Winter Greenhouse For Hydroponic Growing System With Film Cover

Product Details:

Place of Origin:	Shandong, China
Model Number:	ST8X50

Payment & Shipping Terms:

Minimum Order Quantity:	300 square meters
Price:	$9.00 - $19.50/square meters
Packaging Details:	Steel frame will load into container directly.<br>Small accessories are packed by cartoon or bags.<br>Film is packed by bags.
Supply Ability:	50000 Square Meter/Square Meters per Month

Contact Now

Galvanized Steel Tube Winter Greenhouse For Hydroponic Growing System With Film Cover

Description

Features:	Easy Assembled	Manufacturer:	Shine-tech
Instruction For Use:	Installation Drawing	Size:	Small
Material:	PE	Type:	Single-Span Agricultural Greenhouses
Cover Material:	Film	Layer:	Single
Product Name:	Solar Passive Greenhouse	Application:	Growing Tomato, Cucumber, Peper
Width:	8m-16m	Length:	50-120m
Height:	4-6M	Frame Material:	Hot Dip Galvanized Steel Tube
Covering:	150/200micro Film	Ventilation:	Roof Ventilation+side Ventilation
Optional System:	Cooling System,irrigation System

Product Description

Chinese Style Single Span Sunlight Winter Greenhouse For Hydroponic Growing System

Advantage: Good heat preservation effect, reducing heat loss by 50%
Solar Passive Greenhouse has three walls of brick or clay. Only the southern side of the building consists of plastic film or PC sheet. The brick walls also block the cold, northern winds, then keep the greenhouse warm.

With this design, Crop growth time will be shortened by 20-30%, crop yield will increase by 10-15%,

Solar Passive Greenhouse
Product Name	Solar Passive Greenhouse
Width	8m~16m
Length	50m~120m
Height of Greenhouse	3.5-6m (customization)
Covering	150/200 micron PE/PO Film
Wind load	45km/m2
Snow load	0.5KN/m2
Max. rainfall	140mm/h
Hanging load	14kgkg/m2
Optional system	Side ventilation, roof ventilation, drip irrigation system, fogging system, cooling system, etc.

Details Images

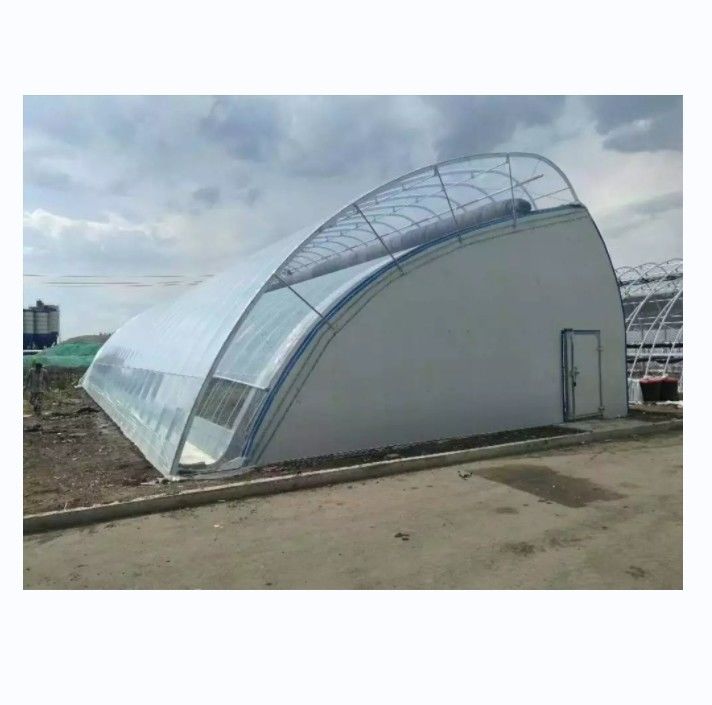

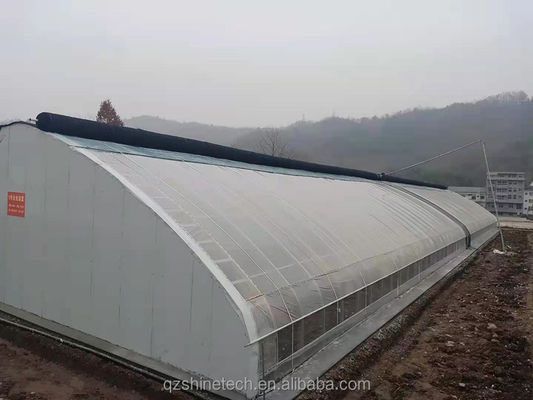

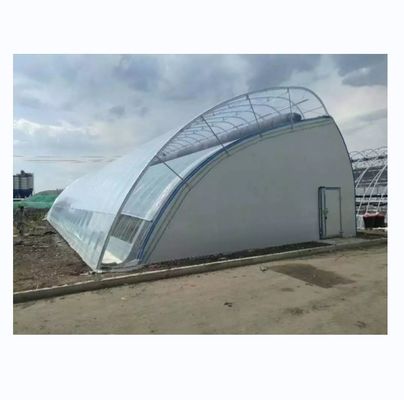

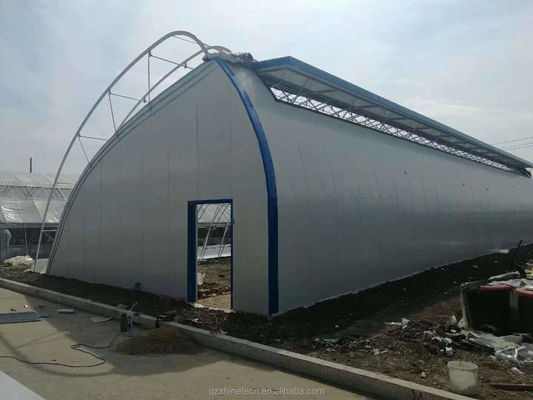

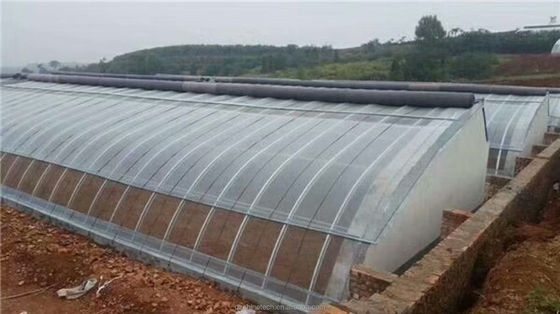

Solar Greenhouse

The greenhouse has three walls of brick or clay. We can call it "Lean on wall greenhouse". The southern side of the GREENHOUSE consists of plastic film or PC sheet.

The brick walls block the cold, northern winds, then keep the greenhouse warm.

Separate Solar Greenhouse

The greenhouse is made of steel pipes all around (no brick walls). the whole structure is covered with plastic film. In order to achieve the thermal insulation effect, the four sides can be covered with waterproof thermal insulation quilt /blanket.

Double Layer Solar Greenhouse

The greenhouse is double arch structure used for very cold area. Like Russia, Cnada, USA,etc. the outer layer is covered with film, and the inner layer is covered with film and thermal insulation quilt/blanket.

Frame

25mm/32mm/ 42mm /60mm diameter, thick 1.5mm, 2.0mm, hot dip galvanized steel pipe

The greenhouse structure is installed directly by screws or self drill screws.
The warranty period of frame is 15~20 years

Covering

Thickness: 120/150/200 microns. It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%

Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years

Front Ventilation System

Top Ventilation System

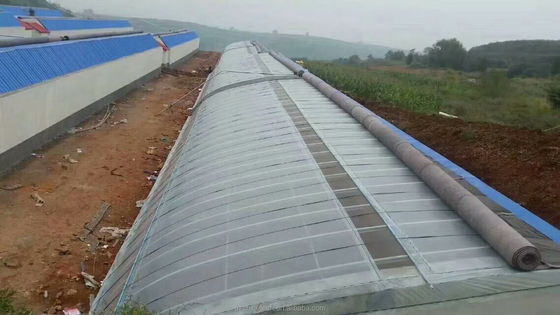

Warming Quilt

The Waterproof warming quilt has Excellent insulation performance for a long time，Long anti-aging life，not easy to puncture the
greenhouse.

Quilt Roll-up Motor

The greenhouse is equipped with a electric motor to roll the quilt during the day to provide light
to the plants, and put the quilt down at night to keep warm and cold.

Project Case

Company Profile

Qingzhou Shine Tech Agriculture Equipment Co., LTD

Our Company is a high-tech agricultural equipment company integrating design, manufacturing, installation, after-sales, and Tunkey service. Our main products are single tunnel greenhouse, multi span film greenhouse, PC greenhouse, Venlo glass greenhouse, Photovoltaic greenhouse, winter solar greenhouse, blackout greenhouse, hydroponic system, greenhouse film, cooling fan and pad, shading system, heating system, nursery bench, etc.
Our company persists in principal of quality first, builds wholesome quality management system, and strictly control the product quality. Our products have exported to the Philippines, Indonesia, India, Malaysia, Singapore, Thailand, Korea, Sri Lanka, Australia, French Polynesia, Uzbekistan, Kazakhstan, Turkmenistan, Armenia, UAE, Qatar, Saudi Arabia, Oman, Senegal, South Africa, Zimbabwe, Nigeria, Kenya, Ghana, Cameron, Democratic Republic of the Congo, Ethiopia, USA, Canada, Peru, Chile, Guyana, and so on, total more than 40 countries and places.
Our company is adhering to the business concept of "doing our best, pursuing outstanding, quality first and customer orientation", and trying our best to supply the best products and first-rate service to all the domestic and overseas customers. Warmly welcome you to our company for visiting and business negotiation. If you prepare to build greenhouse, welcome to contact me and tell me your requirements, then I will give you a best design and quotation.
My Whatsapp/Wechat is same: +86 15966157097
EMAIL: shinetech2022@163.com

Packing & Delivery

Why Choose Us

Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.

Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
