Multi Span Commercial Agricultural Smart Venlo PC Greenhouse 4.0-8.0M Height

Large Image : Multi Span Commercial Agricultural Smart Venlo PC Greenhouse 4.0-8.0M Height

Product Details:

Place of Origin:	Shandong, China
Model Number:	STGG12-4

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	$19.00 - $30.00/square meters
Packaging Details:	Steel frame will load into container directly.<br>Small accessories are packed by cartoon or bags.<br>PC sheet is load directly
Supply Ability:	50000 Square Meter/Square Meters per Month

Contact Now

Multi Span Commercial Agricultural Smart Venlo PC Greenhouse 4.0-8.0M Height

Description

Manufacturer:	Shine-tech	Instruction For Use:	Installation Drawing
Size:	Large	Type:	Multi-Span Agricultural Greenhouses
Cover Material:	Pc Sheet, 8mm PC Sheet	Product Name:	Polycarbonate Greenhouse
Application:	Vegetable Fruits Flowers	Span Width:	8m/9.6m/12m
Bay Width:	4m	Height:	4.0-8.0M
Frame Material:	Hot Galvanized Steel Frame Structure	Advantage:	Super Strong Resistance
Cooling System:	Exhaust Fan+Cooling Pad	Optional System:	Shading System.irrigation System.ventilation.heating System,etc

Product Description

Multi-span Commercial Agricultural Smart Venlo PC Greenhouse Polycarbonate Green House Supplier

PC greenhouse is widely used in the cultivation of vegetables, fruits and flowers. It can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters.
The Frame material of the greenhouse is made of galvanized steel material, which is connected by anti-rust bolts , life span is more than 20years

We have Multi-span Venlo PC greenhouse and Arch PC greenhouse for your choice.

Venlo PC greenhouse

Venlo PC greenhouse is triangular roof. each span width is 12m. each span has three roofs.

Arch PC greenhouse

Arch PC greenhouse is round roof. Each span width is 8m. each span has one roof.

Specification

Polycarbonate Greenhouse
Product Name	PC Greenhouse
Span width	8m/9.6m/12m(customization)
Bay width	4m
Wall height	4m or customized
Roof Covering	8mm PC sheet
Side covering	8mm PC sheet or Tempered Glass
Wind load	0.6KN/m2
Snow load	0.5KN/m2
Max. rainfall	140mm/h
Hanging load	25~30kg/m2
Optional system	Side ventilation, roof ventilation, Outside shading system, Inside shading system, cooling system, heating system, drip irrigation system, fogging system, aotomatic control system, hydroponic system and so on.

Details Images

Strip foundation

Around the greenhouse build strip foundation and about 500 mm height wall.

Independent foundation

The column of inside greenhouse use independent foundation.

Frame

The Frame Materials of greenhouse are hot dip galvanized steel and accessories.The structure is strong and durable.

The warranty period of frame is 15~25 years

Covering

Thickness: 6mm~16mm thickness. the post popular model is 8mm twin wall PC sheet

Light transmission:>80%

Warranty: 15years

Ventilation System

The PC greenhouse has both side ventilation and top ventilation system.
Good ventilation can constantly supplement the carbon dioxide needed by plants, promote the growth of plants, and also regulate the temperature to provide a good living environment for plants

Outside Shading System

Shading net: black round wire shade net with 75% shading rate.

Function: Electric control, adjust the light intensity to
improve the ecological environment in the greenhouse and lower the temperature.

Inside Shading System

Shading net: white aluminum foil shade net with 45% shading rate.

Function: Electric control, avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.

Cooling System

The cooling system including exhaust fan, cooling pad, and water pimp system.

The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of temperature down.

Heating System

The most popular system is electric heating fan, and water boiler with heating blower.

We recommend electric heating fan for small greenhouse. water boiler and heating blower for large commercial greenhouse.

Sprinkling Irrigation System

The irrigation is movable irrigation system mainly used for seedling tables in the greenhouse.

Control System

The electric control system is used for control the Shade curtain, cooling fan and pad, side ventilation, wet pad ventilation, and so on. The system includes control cabinet, cables and accessories and tools, etc.

Hydroponic system

Hydroponic system provides more moisture and nutrition for vegetables and fruits
It makes the greenhouse area much cleaner and tidy

Wide Application

Galvanized Steel Frame Polycarbonate Greenhouse is Widely for fruit(strawberry, cherry, grape, watermelon, and so on), vegetable(tomato, cucumber, potato, eggplant, pepper, bean, celery, onion and so on), flowers, poultry farming, mushroom cultivation and so on.

Project Case

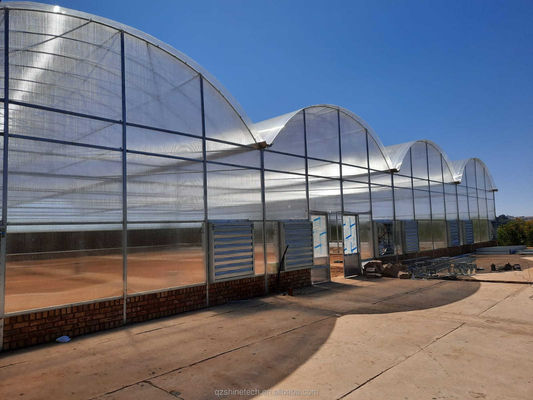

Multi span Arch Polycarbonate greenhouse is under construction.

Multi span Venlo Polycarbonate greenhouse is under construction.

Company Profile

Qingzhou Shine Tech Agriculture Equipment Co., LTD

Our Company is a high-tech agricultural equipment company integrating design, manufacturing, installation, after-sales, and Tunkey service. Our main products are single tunnel greenhouse, multi span film greenhouse, PC greenhouse, Venlo glass greenhouse, Photovoltaic greenhouse, winter solar greenhouse, blackout greenhouse, hydroponic system, greenhouse film, cooling fan and pad, shading system, heating system, nursery bench, etc.
Our company persists in principal of quality first, builds wholesome quality management system, and strictly control the product quality. Our products have exported to the Philippines, Indonesia, India, Korea, Malaysia, Singapore, Thailand, Sri Lanka, Australia, French Polynesia, Uzbekistan, Kazakhstan, UAE, Turkmenistan, Armenia, Qatar, Saudi Arabia, Oman, Senegal, South Africa, Zimbabwe, Nigeria, Kenya, Ghana, Cameron, Democratic Republic of the Congo, Ethiopia, USA, Canada, Peru, Chile, Guyana, and so on, total more than 40 countries and places.

Packing & Delivery

FAQ

Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.

Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
