Large Agricultural Intelligent Holland Greenhouse Glass for Tomatoes Cucumber Lettuce

Name: Large Agricultural Intelligent Holland Greenhouse Glass for Tomatoes Cucumber Lettuce
Brand: Shine-tech
SKU: STGG12-4
Price: 19.00 USD
Availability: InStock
Rating: 4.5 (193 reviews)

All Products

High Tunnel Greenhouse
(27)

Multi Span Greenhouse
(27)

Polycarbonate Sheet Greenhouse
(17)

Glass Panel Greenhouse
(12)

Passive Solar Greenhouse
(24)

Auto Blackout Greenhouse
(3)

Hydroponic Growing Systems
(7)

Greenhouse Accessories
(13)

I'm Online Chat Now

Large Agricultural Intelligent Holland Greenhouse Glass for Tomatoes Cucumber Lettuce

Large Image : Large Agricultural Intelligent Holland Greenhouse Glass for Tomatoes Cucumber Lettuce

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Shine-tech
Model Number:	STGG12-4

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	$19.00 - $49.00/square meters

Contact Now

Large Agricultural Intelligent Holland Greenhouse Glass for Tomatoes Cucumber Lettuce

Description

Manufacturer:	Shine-tech	Instruction For Use:	Installation Drawing
Size:	Large	Type:	Multi-Span Agricultural Greenhouses, Venlo
Cover Material:	Glass	Product Name:	Glass Greenhouse
Application:	Vegetable Fruits Flowers	Span Width:	8m/9.6m/12m
Height:	4.0-8.0M	Frame Material:	Hot Galvanized Steel Frame Structure
Roof Covering:	5mm Tempered Glass	Side Wall Covering:	5+6+5mm Tempered Glass
Advantage:	Super Strong Resistance	Optional System:	Cooling System.irrigation System.ventilation.etc

Product Description

Agricultural Intelligent Holland Greenhouse Glass Agriculture Vegetable Greenhouse for Tomatoes Cucumber Lettuce

Venlo Glass Greenhouse has the characteristics of high light transmittance, beautiful appearance, simple and stable structure, and strong anti-corrosion.
It is suitable for plants with high requirements for sunlight. Each span of the glass multi-span greenhouse has 3 roofs, and each span has two slopes. The skeleton material of the greenhouse is generally made of galvanized steel material, which is connected by anti-rust bolts.greenhouses can be used in all areas of agriculture such as breeding, kinds of economic plants growing,commercial
ecological sightseeing park and scientific research ect.

1.Agricultural Glass Greenhouse provides ideal environment for plants growth. It can resist heavy and strong snow/wind, and very easy to clean and maintain.

2.The light transmittance is more than 90%.
3. Glass Greenhouse is Venlo shape with modern and novel apperance, stable structure, The life time of the greenhouse structure is more than 20years.
4. It can be equipped with inside and outside shading system, top and side window ventilation system, wet curtain and fan cooling system, heating system, automatic system and so on.
5.Other equipments can be applied according to the user's planting needs.

Specification

Large Commercial Agricultural Venlo Glass Greenhouse for Vegetable Cultivation
Product Name	Venlo Glass Greenhouse
Span width	8m/9.6m/12m(customization)
Bay width	4m (customization)
Height of Greenhouse	4-8m (customization)
Roof Covering	5mm tempered glass or PC sheet
Side covering	5+6+5mm double layer glass
Wind load	45~55km/m2
Snow load	0.40~0.5KN/m2
Max. rainfall	140mm/h
Hanging load	25~30kg/m2
Optional system	Side ventilation, roof ventilation, Outside shading system, Inside shading system, cooling system, heating system, drip irrigation system, fogging system, aotomatic control system, hydroponic system and so on.

Details Images

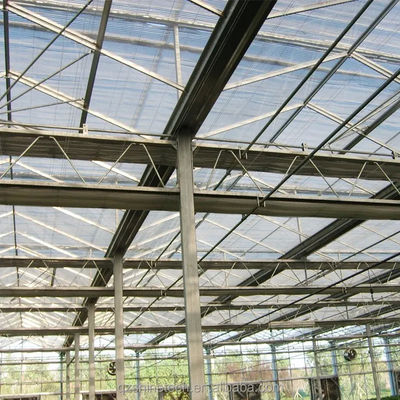

Frame

The Frame Materials of greenhouse are hot dip galvanized steel and accessories.The structure is strong and durable.

The warranty period of frame is 15~25 years

Covering

Roof cover is mostly 5mm tempered glass sheet, or 8mm twin wall polycarbonate sheet.

The side wall is usually covered by 5+6+5mm double layer glass.

Ventilation System

The greenhouse has both side ventilation and top ventilation system.
Good ventilation can constantly supplement the carbon dioxide needed by plants, promote the growth of plants, and also regulate the temperature to provide a good living environment for plants

Outside Shading System

Shading net: black round wire shade net with 75% shading rate.

Function: Electric control, adjust the light intensity to
improve the ecological environment in the greenhouse and lower the temperature.

Inside Shading System

Shading net: white aluminum foil shade net with 45% shading rate.

Function: Electric control, avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.

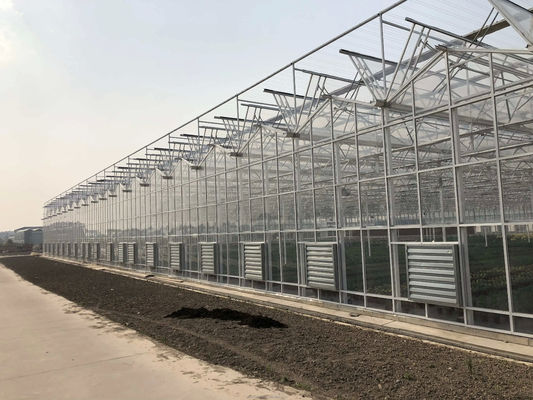

Cooling System

The cooling system including exhaust fan, cooling pad, and water pimp system.

The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of temperature down.

Heating System

The most popular system is electric heating fan, and water boiler with heating blower.

We recommend electric heating fan for small greenhouse. water boiler and heating blower for large commercial greenhouse.

NFT hydroponic system

A frame NFT hydroponic system for growing leafy vegetables

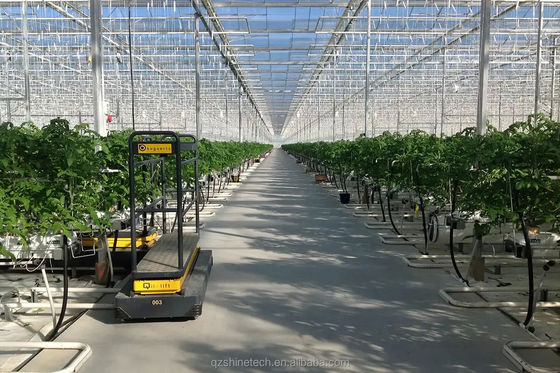

Wide Application

Wide application

Multi span film greenhouse is Widely for fruit(strawberry, cherry, grape, watermelon, muskmelon and so on), vegetable(tomato, cucumber, potato, eggplant, pepper, bean, celery, onion and so on), flowers, poultry farming, edible mushrooms cultivation and so on.

Project Case

Our Glass greenhouse project in Turkmenistan, four greenhouses total dimension 4000square meters.

Other glass greenhouse projects for your referance

Company Profile

Qingzhou Shine Tech Agriculture Equipment Co., LTD

Our Company is a high-tech agricultural equipment company integrating design, manufacturing, installation, after-sales, and Tunkey service.

Our main products are single tunnel greenhouse, multi span film greenhouse, PC greenhouse, Venlo glass greenhouse, Photovoltaic greenhouse, winter solar greenhouse, blackout greenhouse, hydroponic system, greenhouse film, cooling fan and pad, shading system, heating system, nursery bench, etc.

Our company persists in principal of quality first, builds wholesome quality management system, and strictly control the product quality. Our products have exported to the Philippines, Indonesia, India, Malaysia, Singapore, Thailand, Korea, Sri Lanka, Australia, French Polynesia, Uzbekistan, Kazakhstan, Turkmenistan, Armenia, UAE, Qatar, Saudi Arabia, Oman, Senegal, South Africa, Zimbabwe, Nigeria, Kenya, Ghana, Cameron, Democratic Republic of the Congo, Ethiopia, USA, Canada, Peru, Chile, Guyana, and so on, total more than 40 countries and places.

Our company is adhering to the business concept of "doing our best, pursuing outstanding, quality first and customer orientation", and trying our best to supply the best products and first-rate service to all the domestic and overseas customers. Warmly welcome you to our company for visiting and business negotiation.
If you prepare to build greenhouse, welcome to contact me and tell me your requirements, then I will give you a best design and quotation.

My Whatsapp/Wechat is same: +86 15966157097
EMAIL: shinetech2022@163.com

Packing & Delivery

FAQ

Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.

Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
