Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame

Large Image :  Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame

Product Details:
Place of Origin: Shandong, China
Model Number: STGG12-4
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: $25.00 - $49.00/square meters
Packaging Details: Steel frame will load into container directly.<br>Small accessories are packed by cartoon or bags.<br>Glass sheet is packed by wooden case.
Supply Ability: 50000 Square Meter/Square Meters per Month
Contact Now

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame

Description
Manufacturer: Shine-tech Instruction For Use: Installation Drawing
Size: Large Type: Multi-Span Agricultural Greenhouses, Venlo
Cover Material: Glass Product Name: Glass Greenhouse
Application: Vegetable Fruits Flowers Span Width: 8m/9.6m/12m
Bay Width: 4m Height: 4.0-8.0M
Frame Material: Hot Galvanized Steel Frame Structure Covering: Tempered Glass
Advantage: Super Strong Resistance Optional System: Cooling System.irrigation System.ventilation.heating Systemetc
Port: Qingdao Port

Product Description

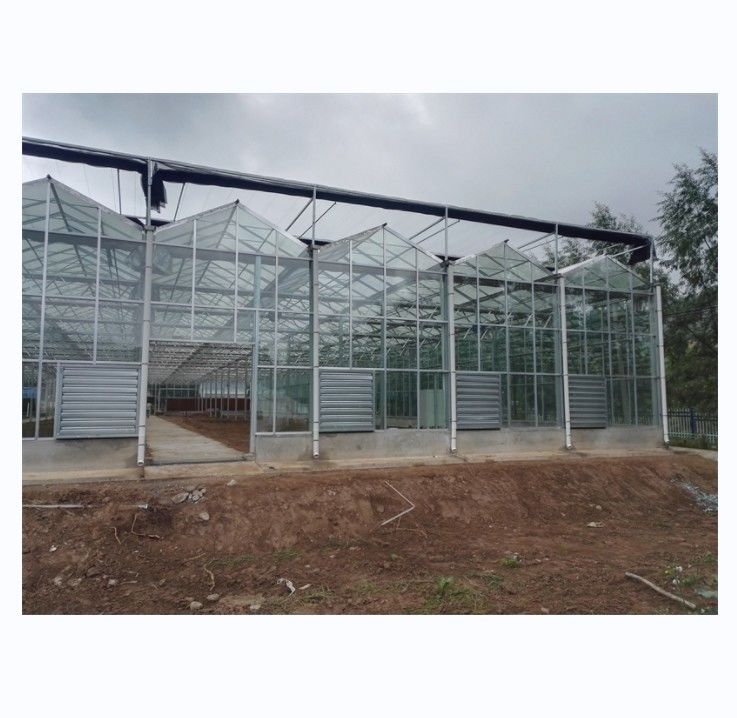

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 0
Agricultural Intelligent Holland Frame Glass Greenhouse Vegetable Greenhouse
Multi Span Glass Greenhouse has the characteristics of high light transmittance, beautiful appearance, simple and stable structure, and strong anti-corrosion.
It is suitable for plants with high requirements for sunlight. Each span of the glass multi-span greenhouse has 3 roofs, and each span has two slopes. The skeleton material of the greenhouse is generally made of galvanized steel material, which is connected by anti-rust bolts.greenhouses can be used in all areas of agriculture such as breeding, kinds of economic plants growing,commercial
ecological sightseeing park and scientific research ect.
1.Agricultural Glass Greenhouse provides ideal environment for plants growth. It can resist heavy and strong snow/wind, and very easy to clean and maintain.
2.The light transmittance is more than 90%.
3. Glass Greenhouse is Venlo shape with modern and novel apperance, stable structure, The life time of the greenhouse structure is more than 20years.
4. It can be equipped with inside and outside shading system, top and side window ventilation system, wet curtain and fan cooling system, heating system, automatic system and so on.
5.Other equipments can be applied according to the user's planting needs.
Specification
Agricultural Intelligent Holland Frame Glass Greenhouse Vegetable Greenhouse
Product Name
Venlo Glass Greenhouse
Span width
8m/9.6m/12m(customization)
Bay width
4m (customization)
Height of Greenhouse
4-8m (customization)
Roof Covering
5mm tempered glass or PC sheet
Side covering
5+6+5mm  double layer glass
Wind load
45~55km/m2
Snow load
0.40~0.5KN/m2
Max. rainfall
140mm/h
Hanging load
25~30kg/m2
Optional system
Side ventilation, roof ventilation, Outside shading system, Inside shading system,  cooling system, heating system, drip irrigation system, fogging system, aotomatic control system, hydroponic system and so on.
Details Images

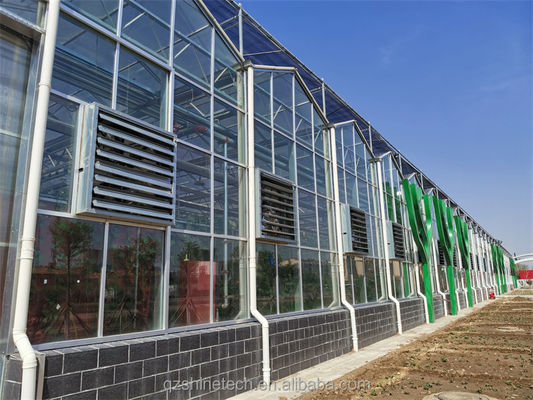

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 1

Frame

The Frame Materials of greenhouse are hot dip galvanized steel and accessories.The structure is strong and durable.
The warranty period of frame is 15~25 years

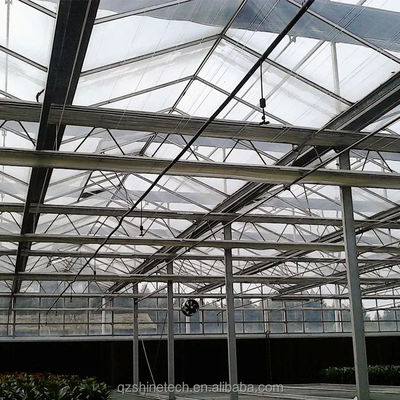

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 2

Covering

Thickness: 120/150/200 microns. It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%
Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years

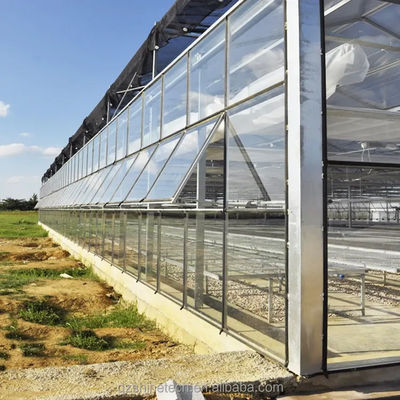

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 3
Ventilation System
The greenhouse has both side ventilation and top ventilation system.
Good ventilation can constantly supplement the carbon dioxide needed by plants, promote the growth of plants, and also regulate the temperature to provide a good living environment for plants

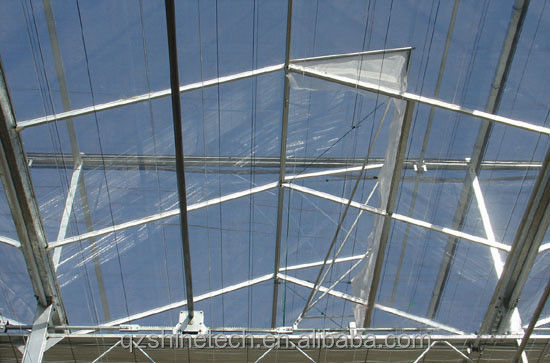

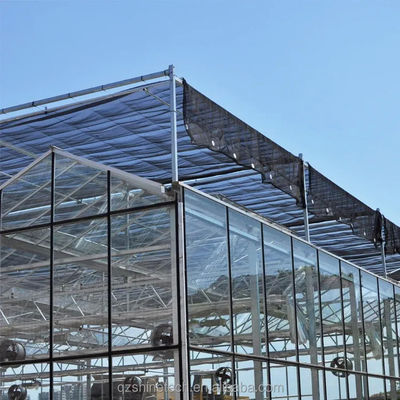

Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 4

Outside Shading System

Shading net: black round wire shade net with 75% shading rate.
Function: Electric control, adjust the light intensity to
improve the ecological environment in the greenhouse and lower the temperature.
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 5

Inside Shading System

Shading net: white aluminum foil shade net with 45% shading rate.
Function: Electric control, avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 6

Cooling System

The cooling system including exhaust fan, cooling pad, and water pimp system.
The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of temperature down.
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 7

Heating System

The most popular system is electric heating fan, and water boiler with heating blower.
We recommend electric heating fan for small greenhouse. water boiler and heating blower for large commercial greenhouse.
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 8
Hydroponic system
Hydroponic system provides more moisture and nutrition for vegetables and fruits
It makes the greenhouse area much cleaner and tidy
Wide Application
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 9
Wide application
Venlo Glass Greenhouse is Widely for fruit(strawberry, cherry, grape, watermelon, and so on), vegetable(tomato, cucumber, potato, eggplant, pepper, bean, celery, onion and so on), flowers, poultry farming, mushroom cultivation and so on.
Project Case
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 10
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 11
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 12
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 13
Company Profile
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 14
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 15
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 16
Packing & Delivery
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 17
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 18
Tempered Glass Covered Agricultural Greenhouse for Growing Vegetables in Holland Frame 19
Why Choose Us
Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.
Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
