Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height

Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height

Large Image :  Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height

Product Details:
Place of Origin: Shandong, China
Model Number: ST8X50
Payment & Shipping Terms:
Minimum Order Quantity: 300 square meters
Price: $4.00 - $6.00/square meters
Packaging Details: Steel frame will load into container directly.<br>Small accessories are packed by cartoon or bags.<br>Film is packed by bags.
Supply Ability: 50000 Square Meter/Square Meters per Month
Contact Now

Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height

Description
Features: Easy Assembled Manufacturer: Shine-tech
Instruction For Use: Installation Drawing Size: Small
Material: PE Type: Single-Span Agricultural Greenhouses
Cover Material: Film Layer: Single
Product Name: Agricultural Greenhouse 50x8m Application: Growing Tomato, Cucumber, Peper
Width: 6m-10m Length: 10-100m
Height: 3.5-5M Frame Material: Hot Dip Galvanized Steel Tube
Covering: 150/200micro Film Ventilation: Roof Ventilation+side Ventilation
Optional System: Cooling System,irrigation System Port: Qingdao Port

Product Description
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 0
Agricultural greenhouse 50x8m Single Span Type Tunnel Greenhouse for sale
Tunnel film greenhouse is a simple and practical protective cultivation facility, widely be used all over the world because of its easy construction, easy use and low investment for vegetable and flower productions.
Specification
Agricultural greenhouse 50x8m Single Span Type Tunnel Greenhouse for sale
Product Name
Single Span Tunnel Greenhouse
Span width
8m
Arch distance
50m
Height of Greenhouse
3.5-5m (customization)
Covering
150/200 micron PE/PO Film
Wind load
45km/m2
Snow load
0.25~0.30KN/m2
Max. rainfall
140mm/h
Hanging load
14kgkg/m2
Optional system
Side ventilation, roof ventilation, shading net, drip irrigation system, fogging system, cooling system, etc.
Details Images
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 1

Frame

25mm/32mm/ 42mm /60mm diameter, thick 1.5mm, 2.0mm, hot dip galvanized steel pipe
The greenhouse structure is installed directly by screws or self drill screws.
The warranty period of frame is 15~20 years
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 2

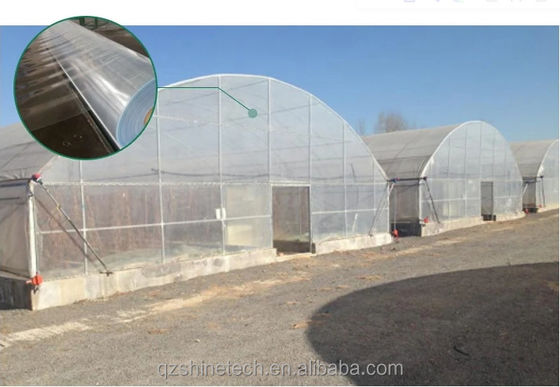

Covering

Thickness: 120/150/200 microns. It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%
Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 3

Ventilation System

The side ventilation or top ventilation system are both available according to your requirement .
40mesh insect net will be offered for vents
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 4

Locking profile system

The film lock accessories is mainly including lock channel and wiggle wire, self drill screw.
Lock channel is usually 5m/5.8m/6m
wiggle wire is 2meter, packed by cartoon. each cartoon is 500pcs.
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 5
Anti-insect net
The Anti Insect Net is made by 100% virgin HDPE with stable UV. It provides protection from range of insects that can be harmful. This preventive method reduces the cost of pesticides to grow organic and natural cultivation.

Other options for tunnel greenhouse


Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 6

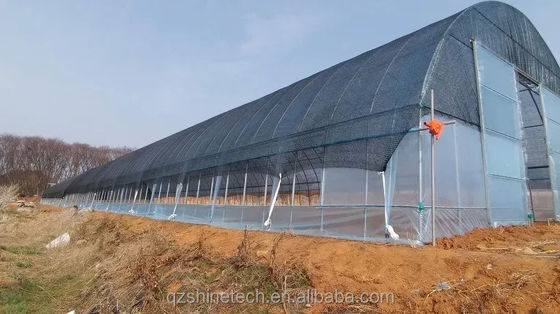

Shading system---Black shade net
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 7
Cooling System--- Exhaust fan
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 8
Spraying system
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 9
Drip irrigation system
Professional Design
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 10
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 11
Project Case
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 12
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 13
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 14
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 15
Company Profile
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 16
Qingzhou Shine Tech Agriculture Equipment Co., LTD
Our Company is a high-tech agricultural equipment company integrating design, manufacturing, installation, after-sales, and Tunkey service. Our main products are single tunnel greenhouse, multi span film greenhouse, PC greenhouse, Venlo glass greenhouse, Photovoltaic greenhouse, winter solar greenhouse, blackout greenhouse, hydroponic system, greenhouse film, cooling fan and pad, shading system, heating system, nursery bench, etc.
Our company persists in principal of quality first, builds wholesome quality management system, and strictly control the product quality. Our products have exported to the Philippines, Indonesia, India, Malaysia, Singapore, Thailand, Korea, Sri Lanka, Australia, French Polynesia, Uzbekistan, Kazakhstan, Turkmenistan, Armenia, UAE, Qatar, Saudi Arabia, Oman, Senegal, South Africa, Zimbabwe, Nigeria, Kenya, Ghana, Cameron, Democratic Republic of the Congo, Ethiopia, USA, Canada, Peru, Chile, Guyana, and so on, total more than 40 countries and places.
Our company is adhering to the business concept of "doing our best, pursuing outstanding, quality first and customer orientation", and trying our best to supply the best products and first-rate service to all the domestic and overseas customers. Warmly welcome you to our company for visiting and business negotiation. If you prepare to build greenhouse, welcome to contact me and tell me your requirements, then I will give you a best design and quotation.
My Whatsapp/Wechat is same: +86 15966157097
EMAIL: shinetech2022@163.com
Packing & Delivery
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 17
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 18
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 19
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 20
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 21
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 22
Film Cover 50x8m Single Span Type Agricultural Tunnel Greenhouse with 3.5-5M Height 23
Why Choose Us
Q1:Can you design for us?
A: As we are manufacturer,we have our own research and development group,we can design the greenhouse according to your request or
drawing.
Q2:How to ensure the quality of the products ?
A: Before delivery, our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
You can let your friend or Third-party testing company to come for check product.
Q3:How can you ensure the legality and security during transaction?
A: We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensure supplier fulfill their obligations regarding delivery and product quality.
Q4:Do you provide installations and training service?
A: It is easy to install. We send install video or drawing to you. Or welcome visiting our factory. We will guide you how to install it in our factory
Q5:How long is delivery time?
A: 7-30days after getting deposit, it according to your order quantity.
